The CC2400 Multifunction Plate by NK BY NEURTEK allows adhesion and thickness testing according to ISO 2409 and 2808, all in a portable and precise tool.

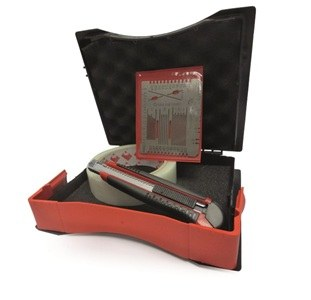

The CC2400 Multifunction Plate by NK BY NEURTEK is a portable, precise and resistant tool, designed to quickly perform adhesion and thickness tests in the field. Ideal for inspectors, quality technicians and paint applicators, it combines in a single device everything needed to control coatings without bulky equipment.

What is the CC2400 Multifunction Plate and what is it used for?

The CC2400 is a 5-in-1 tool that allows different coating tests to be carried out in situ, in compliance with the main international standards.

With this single plate you can:

• Measure the thickness of fresh coatings (from 50 to 500 µm) according to ISO 2808.
• Apply progressive coatings as a stepped applicator up to 2000 µm.
• Perform cross-cut adhesion tests (1, 1.5, 2 and 3 mm) according to ISO 2409.
• Check the levelling of the coating to evaluate the viscosity of paints or varnishes.
• Carry out a cross-scratch Saint Andrew’s Cross type for corrosion tests (ASTM D3359).

One single tool, multiple solutions for coating quality control.

What standards does it comply with?

• ISO 2808 – Wet film thickness measurement.
• ISO 2409 – Cross-cut adhesion test.
• ASTM D3359 – Adhesion and corrosion test by cross-scratch.

Compliance with these standards guarantees accurate and traceable results in every measurement.

Technical details of the central area

The central area of the plate includes:

• Parallel grooving guides:
  • 6x1 mm
  • 6x1.5 mm
  • Allows cuts to be made up to the substrate without penetrating it, reducing the risk of surface damage.

Recommended use according to thickness:

• 1 mm → up to 60 µm.
• 1.5 mm → special applications.
• 2 mm → up to 120 µm.
• 3 mm → from 120 to 250 µm.

Advantages of the CC2400 Multifunction Plate

• Compact, lightweight and easy to transport.
• Replaces several laboratory instruments in the field.
• Multifunction tool for adhesion and thickness testing.
• Ideal for quick inspections and on-site quality control.
• Manufactured with precision by NK BY NEURTEK, guaranteeing reliability and durability.

Frequently Asked Questions about the CC2400 Plate (FAQ)

What type of tests can I perform with the CC2400?
With a single tool you can measure wet film thickness, carry out cross-cut adhesion tests, check coating levelling and perform cross-scratches for corrosion testing. All in accordance with ISO 2808, ISO 2409 and ASTM D3359.

What materials can I analyse with the CC2400?
You can use it on metal, plastic, wood or painted surfaces, as long as the coating is dry or partially cured. It is perfect for industrial paints, protective coatings, lacquers and varnishes.

Is it suitable for field inspections or only for laboratory use?
It is specially designed for field work, although it is also used in quality control laboratories. Its compact size and resistance make it ideal for quick inspections on-site or in production lines.
