Weld Gauges - GAL and Western Instruments

  • Weld Profile Gauge

    Weld Profile Gauge

    G.A.L. Gage Co. GAL-29 Weld Profile Gauge Cat # 29 Quickly & easily check your welds for proper profile Only 3.5" long by 1.5" wide when collapsed. Easy to use Fits in pocket! All Stainless Steel.
    $48.50
    Choose Options
  • 1 3/16 to 2" Taper Gauge

    1 3/16 to 2" Taper Gauge

    1 3/16 to 2" Taper Gauge Stainless Steel All increments permanently engraved Front side - Standard Back side - Metric   SPECIFICATIONS Max Range 2" 50mm Min Range 1-3/16" 30mm Graduations 1/64" 0.2mm
    $72.00
    Choose Options
  • 5/8 to 1 3/16 Taper Gauge

    5/8 to 1 3/16 Taper Gauge

    G.A.L. Gage Co. Gal-28 Taper Gauge Cat # Sub 28A Features 410 Stainless Steel Measurement Scale On side I: Inches On side II: Metric Specifications   Inches Metric Max Range 5/8" 15mm Min Range 1/32" 1.0mm Graduations 1/64" 0...
    $62.75
    Choose Options
  • 1/32 to 5/8 Taper Gauge

    1/32 to 5/8 Taper Gauge

    G.A.L. Gage Co. Gal-28 Taper Gauge Cat # Sub 28A Features 410 Stainless Steel Measurement Scale On side I: Inches On side II: Metric Specifications   Inches Metric Max Range 5/8" 15mm Min Range 1/32" 1.0mm Graduations 1/64" 0...
    $51.00
    Choose Options
  • Digital Welding Gage

    Digital Welding Gage

    G.A.L. Gauge Co. GAL-18 Digital Welding Gauge Cat # 18 Holds either the zero setting or measured value at any position for differential measurements.Warranty: One Year Digital Welding GaugeFeatures  Holds either the zero setting or...
    $98.75
    Choose Options
  • Pipe Pit Gage

    Pipe Pit Gage

    G.A.L. Gage Co. GAL-17 Pipe Pit Gauge Cat # 17 Range is 0 to 1/2" in 1/64" & .010 Increments; Arm Can be Locked in Place at Any Dimension; All Stainless SteelMeasurement Scale: Inch or Metric Warranty: One Year The G.A.L. Pipe Pit Gauge...
    $93.00
    Choose Options

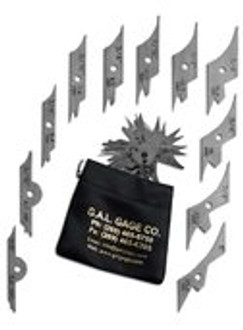

  • Mini Fillet Weld Keys

    Mini Fillet Weld Keys

    G.A.L. Gauge Co. GAL-16 Mini Fillet Weld Keys Cat # 16 Mini Fillet Weld Keys All Gauges Stainless Steel Set Comes with Handy Key Chain & Pocket Pouch 11 Different Sizes in Inches with Metric Equivalent Markings – 1/8” to...
    $50.00
    Choose Options
  • Mini Sub Gauge

    Mini Sub Gauge

    G.A.L. Gauge Co. GAL-14 Mini Sub Socket Weld Gauge Cat # 14 Check Throat DimensionsMeasurement Scale: InchWarranty: One Year “Mini Sub” Socket Weld Gauge Features  Check Throat Dimensions Check Leg Length Checks All Pipe...
    $75.00
    Choose Options
  • Brief Case Type Tool Kit/Lock & Key

    Brief Case Type Tool Kit/Lock & Key

    G.A.L. Gage Co. GAL-12 Brief Case Type Large Tool Kit/Lock & Key Cat # 12 Measurement Scale: Inch or Metric   G.A.L. Gage Brief Case Type Large Tool Kit/Lock & Key CAT-12Measures: 18" X 12 1/2" X 3"Tools Included:V-WAC Gauge*,...
    $959.00
    Choose Options
  • AWS Tool Kit

    AWS Tool Kit

    G.A.L. Gage Co. GAL-12AWS American Welding Society (AWS) Tool Kit Cat # 12AWS / CAT12AWS Measurement Scale: Inch or Metric G.A.L. Gage American Welding Society (AWS) Tool Kit CAT-12AWS   Tools Included:0-150mm Dial Caliper, 6" Scale w/...
    $251.50
    Choose Options
  • Skew-T Fillet Weld Gauge with Calculator

    Skew-T Fillet Weld Gauge with Calculator

    G.A.L. Gage Co. GAL-9c Skew-T Fillet Weld Gauge with Calculator Cat # 9c Checking Angle of Vertical MemberMeasurement Scale: Inch or MetricWarranty: One Year G.A.L. Gage Skew-T Fillet Weld Gauge A handy compilation of mathematical relationships...
    $123.75
    Choose Options
  • 7 Piece Fillet Weld Gauge Set

    7 Piece Fillet Weld Gauge Set

    G.A.L. Gauge GAL-8a / 8c 7-Piece Fillet Weld Gauge Set (1/8" to 1") Cat # 8a / 8c 7 Piece Fillet Weld Set 1/8" to 1" Markings available on BOTH sides 8  - 7 piece - marked 1 side 8a - 7 piece marked both sides 8b - 7 piece marked one side...
    $41.75
    Choose Options
  • W.T.P.S. Gauge

    W.T.P.S. Gauge

    G.A.L. Gage Co. GAL-7 W.T.P.S. Gauge with Calibration Block Cat # 7 G.A.L. Gage W.T.P.S. Gauge with Calibration Block CAT-7 Measure Undercut 0.010 Deep Undercut shall be no more than 0.010 in. (0.25 mm) deep when theweld is transverse to the...
    $71.00
    Choose Options
  • Automatic Weld Size Weld Gauge

    Automatic Weld Size Weld Gauge

    G.A.L. Gage Co. GAL-6 Automatic Weld Size AWS Type Gauge Cat # 6 For Accurate Calibration of Butt Fillet Type WeldsMeasurement Scale: Inch or Metric Warranty: One Year G.A.L. Gage Automatic Weld Size AWS Gauge CAT-6 For Accurate Calibration of...
    $38.00
    Choose Options
  • V-WAC" Single Weld Gage

    V-WAC" Single Weld Gage

    G.A.L. Gauge Co. GAL-5 V-WAC Single Weld Gauge Cat # 5 / CAT5 Undercuts/Pits to 1/4 Inch, Crowns to 1/4 Inch by 1/64 Inch Increments (Tolerance .006") Measurement Scale: Inch Warranty: One Year GAL Gage V-WAC Single Weld Gauge...
    $43.25
    Choose Options
  • Pocket Bridgecam

    Pocket Bridgecam

    G.A.L. Gage Co. GAL-4a Pocket Bridge Cam Gauge Cat # 4a Check Angle of Preparation, Excess Weld Metal, Depth of Undercut, Depth of Pitting, and more. Measurement Scale: Inch & Metric Warranty: One Year G.A.L. Gauge Co. GAL-4 Bridge Cam Gauge...
    $157.00
    Choose Options
  • Bridgecam Gauge

    Bridgecam Gauge

    G.A.L. Gauge Co. GAL-4 Bridge Cam Gauge Cat # 4 Measurement Scale: Inch and Metric Excess Weld Metal (capping size) Warranty: One Year G.A.L. Gauge Co. GAL-4 Bridge Cam Gauge Cat # 4 The following measurements are possible in either inches or...
    $140.75
    Choose Options
  • G.A.L. Adjustable Fillet Weld

    G.A.L. Adjustable Fillet Weld

    G.A.L. Gage Co. GAL-3 Adjustable Fillet Weld Gauge Cat # 3 G.A.L. Gage Adjustable Fillet Weld Gauge CAT-3 Unequal leg measurement feature G.A.L. Adjustable Fillet Weld Gauge is easy to use Features  Measure Fillet Weld Measure Weld Throat...
    $100.50
    Choose Options
  • "HI-LO" Welding Gauge Stainless

    "HI-LO" Welding Gauge Stainless

      The G.A.L. Gage Co. GAL-1 HI-LO Welding Gauge Cat # 1 is a multipurpose and versatile gauge. As with many of our gauges, both standard and metric units of measurement are available directly on the gauge for dimensional verification...
    $138.50
    Choose Options
  • Tri-Weld Gauge

    Tri-Weld Gauge

    The Tri-Weld Gauge provides easy to read measurements of the following welding and fit-up parameters; Internal Hi-Lo, Gap, Filet Height and Leg Length, Weld Height, Undercut Depth, Misalignment, and Angle of Preparation. The Tri-Weld Gauge is equipped...
    $325.00
