Product Description

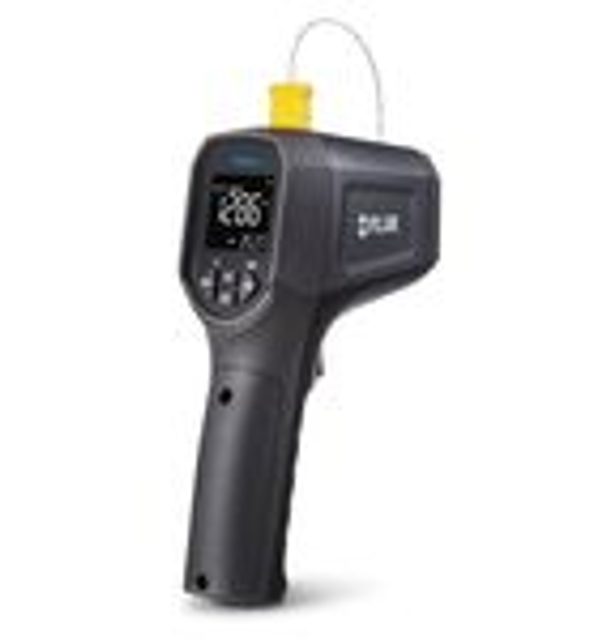

The FLIR TG56-2 provides safer temperature readings where high temperature readings are required. Providing a distance-to-spot ratio of 30:1, the TG56-2 can measure smaller targets from a safer distance. Pinpoint precision is driven by infrared technology, Class II laser sighting, and a maximum IR temperature of 1300°C (2372°F). The color display screen is designed for you to easily view current and selected reference temperature readings simultaneously. The thermometer includes a Type K thermocouple for contact temperature readings.
Designed for Safety, Built for High Temperatures
|
Measure Safely Provides non-contact temperature measurement and a 30:1 spot ratio to measure a smaller target from a safer distance.
|
Specifications
- Distance to Spot Ratio (D:S)
- 30:1
- Basic Accuracy
- 0°C to 100°C (32°F to 212°F): ±1.0°C (±1.8°F)
- Emissivity
- 0.01 to 1.00 with 5 presets
- Display
- 1.57” Color EBTN
Imaging & Optical
- IR Range
- -30°C to 1300°C (-22°F to 2372°F)
- Laser Orientation
- Single point laser to upper edge of measurement
- Laser Power
- ≤1mW, Class II
- Spectral Response
- 8 µm to 14 µm
Measurement & Analysis
- AVG
- Last 20 readings
- Basic Accuracy
- 0°C to 100°C (32°F to 212°F): ±1.0°C (±1.8°F)
- Differential (MAX/MIN)
- Yes
- Distance to Spot Ratio (D:S)
- 30:1
- Included Type K Thermocouple Probe Range
- -30°C to 260°C (-22°F to 500°F)
- Input Basic Accuracy
- ±1°C (±1.8°F) or 1% (whichever is greater)
- Input Range
- -30°C to 650°C (-22°F to 1202°F)
- Input Type
- K
- Max/Min
- Min/Max/Avg/Dif
- Measurement Resolution
- 0.1°C / 0.1°F
- Response
- 250 Milliseconds
Communication & Data Storage
- Memory
- 2 × 99 sets data storage
User Interface
- Display
- 1.57” Color EBTN
Power
- Auto Power Off
- 5 or 15 seconds (selectable)
- Continuous Run Time
- 8 hours maximum continuous temperature measurements
- Power Source
- 9V alkaline battery (included)
General
- Alarm
- High/low alarms with programmable set points
- Alarm Alert
- HI or LO will flash on the display
- Compatibility
- Pipe Clamp Probe
- Data Logging
- Manual and automatic data logger
- Dimensions (L x W x H)
- 192 mm × 125 mm × 64 mm (7.5 in × 4.9 in × 2.5 in)
- Includes
- Spot IR Thermometer, 9V battery, Quick Start Guide, and Storage Pouch
- Locking System
- Yes
- Scanning Mode
- Yes
- Weight
- 310 g (10.9 oz)
- Worklights
- Yes
Environmental & Certifications
- Certifications
- CE, UKCA, RCM, WEEE and FDA
- Drop test
- 1 m (3.2 ft)
- Emissivity
- 0.01 to 1.00 with 5 presets
- IP Rating
- IP20
- Warranty
- Limited 3-Year Warranty
