Product Description
The FLIR IM75-2 is both an advanced multifunction digital multimeter and a premier handheld insulation tester with functions for installation, troubleshooting and maintenance for professionals. The FLIR IM75-2 includes several specialty insulation modes such as polarization index, dielectric absorption, and earth bond resistance. Insulation tests can be performed instantly, continuously, and over a timed duration to allow for in-depth assessment. The multi-color LED indicator in compare mode makes pass/fail determinations easy and visible. Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.
|
Advanced Insulation Testing • Advanced multifunction digital multimeter and premier handheld insulation tester for installation, troubleshooting and maintenance professionals |
Built Tough for Demanding Work Conditions • Constructed to make any electrical problem easier to troubleshoot |
App Connectivity to Support Your Workflow • Wireless communication with the FLIR METERLiNK® App |
 |

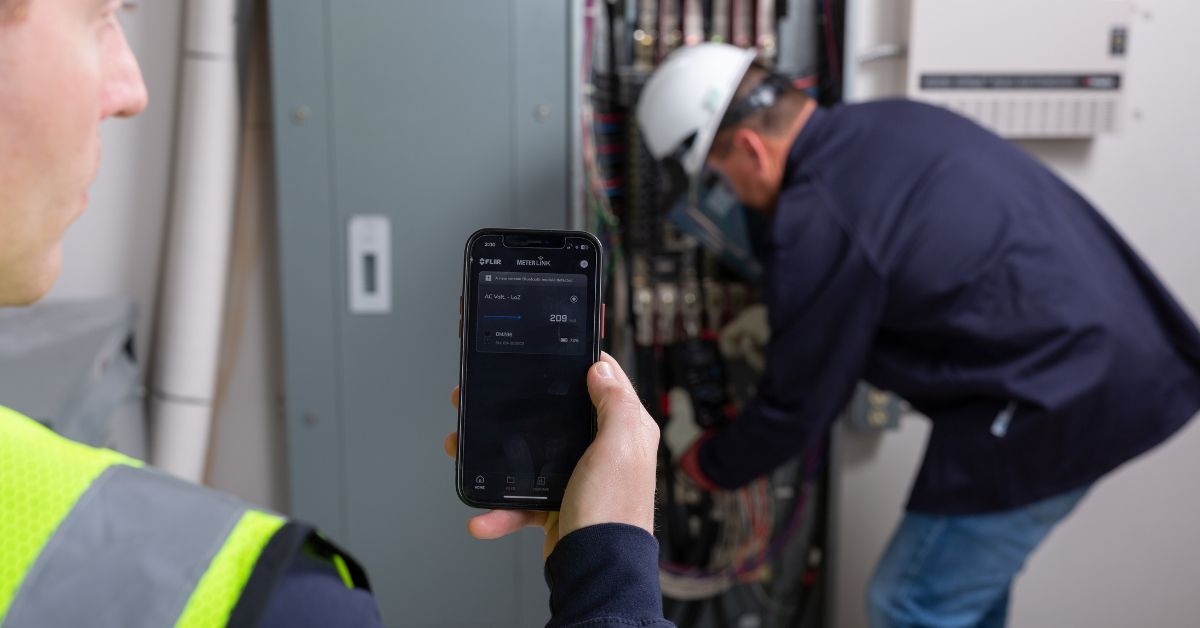

GET INSPECTION EQUIPMENT TO THE PEOPLE YOU NEED FLIR METERLiNK® AppThe FLIR METERLiNK® app allows you to monitor a variety of environmental and electrical conditions simultaneously with the ability to connect with up to seven FLIR compatible meters at once. METERLiNK allows you to safely capture images and monitor hazardous areas remotely and in real time. Whether you're connecting several FLIR clamp meters, digital multimeters, or any of the new METERLiNK app compatible meters, you will be able to keep tabs on key readings around your facility and easily share them with your team. |
Specifications
- Insulation Resistance
- 4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits)
- Insulation Test Voltages
- 50 V for max. 50.0 MΩ
100 V for max 100.0 MΩ
250 V for max. 250.0 MΩ
500 V for max. 500.0 MΩ
1000 V for max.20 GΩ
- Category Rating
- CAT IV-600 V, CAT III-1000 V
Measurement & Analysis
- AC Voltage
- 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits),
61 Hz to 500 Hz ± (2.0% + 5 digits)
- Capacitance
- 1000 µF ± (1.2% + 2 digits)
10.00 mF ± (1.2% + 20 digits)
- Category Rating
- CAT IV-600 V, CAT III-1000 V
- Continuity
- 400.0 Ω ± (0.5% + 2 digits)
- DC Voltage
- 1000.0 V ± (0.1% + 5 digits)
- Earth Bond Resistance
- 40.00 Ω ± (1.5% + 5 digits)
400.0 Ω ± (1.5% + 3 digits)
4000 Ω ± (1.5% + 3 digits)
40.00 kΩ ± (1.5% + 3 digits)
- Frequency [ACV]
- 400.0 Hz ± 5 digits
4.000 kHz ± 5 digits
40.00 kHz ± 5 digits
- Insulation Resistance
- 4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits)
- Insulation Test Voltages
- 50 V for max. 50.0 MΩ
100 V for max 100.0 MΩ
250 V for max. 250.0 MΩ
500 V for max. 500.0 MΩ
1000 V for max.20 GΩ
- VFD AC Voltage
- 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits),
61 Hz to 400 Hz, ± (5.0% + 5 digits)
Communication & Data Storage
- Bluetooth range max
- 10 m (32 ft)
- Memory
- 99 storage locations
Power
- Battery Type
- 6 × 1.5 V AAA alkaline batteries
Environmental & Certifications
- Certifications
- FCC Class B, CE, UL, UKCA, RCM
- Drop test
- 3 m (9.8 ft)
- IP Rating
- IP54 dust-protected and splash-resistant
- Operating Temperature
- 0°C to 50°C (32°F to 122°F)
- Warranty
- https://www.flir.com/testwarranty
