Quickly and easily detect air and water leaks in building envelopes and rigid air barrier systems. Ideal for testing penetrations (fasteners, masonry ties, etc.) and continuity of joints and seams in rigid air barrier systems.

For use with:

• Single and two-ply membranes
• Liquid applied membranes
• Sprayed Polyurethane Foam (SPF)
• Boardstock
• Metal Liners
• Exterior Insulation and Finish Systems (EIFS)
• EPDM roofing systems
• Waterproofing and more

Photo Gallery

Features

Simple

• Each kit comes with everything needed for testing
• Includes FREE downloadable PosiSoft Desktop Software for PC
• One year warranty

Accurate

• Internal memory stores up to 200 test results with rate, time duration, limit and user-entered Pass/Fail conclusion
• High accuracy pressure sensor
• Conforms to National Standards including ASTM E1186

Durable

• Portable, lightweight tester can be used in any position
• Environmentally sealed enclosure - dustproof and waterproof
• Built-in rechargeable batteries perform up to 200 tests per charge. Continue testing with AC power while batteries recharge. Supplied with universal AC adapter.

Specifications

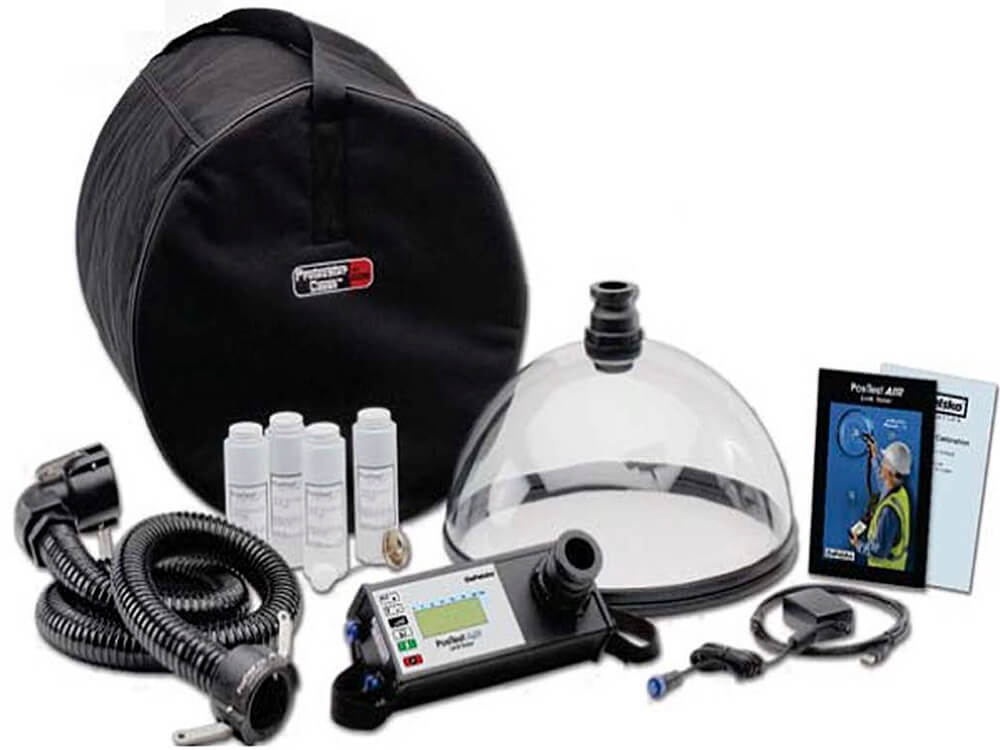

Complete Kit

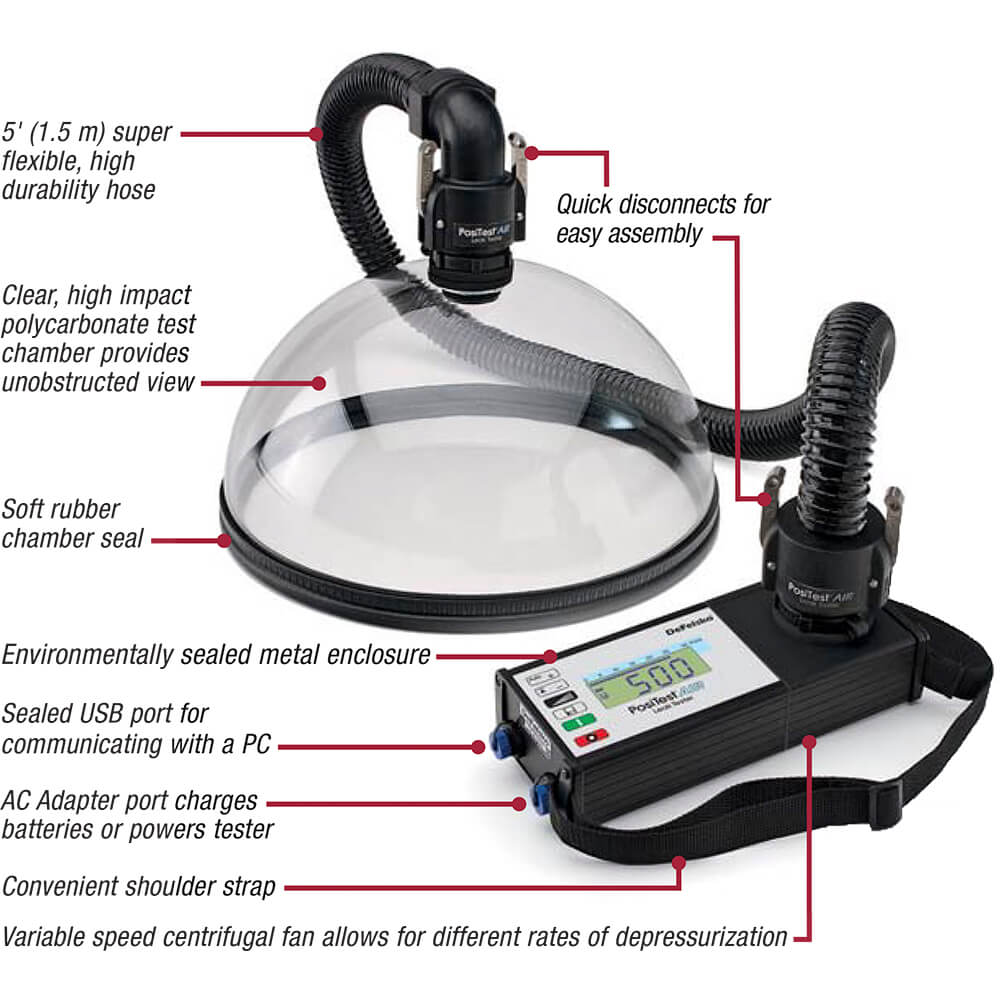

Tester comes complete with shoulder strap, high impact polycarbonate test chamber, durable 5' (1.5 m) hose with quick disconnect couplings, built-in rechargeable NiMH batteries with charger (AC power supply), 8 oz. test solution with dauber (Qty. 4), instruction manual, USB cable, PosiSoft Desktop Software (available as a free download), Certificate of Calibration traceable to NIST, one (1) year warranty and soft-sided nylon carry case.

How It Works

Detailed instructions are available in our PosiTest AIR Instruction Manual

The portable, hand-operated PosiTest AIR Leak Tester tests the air barrier integrity of single, two-ply and liquid membrane systems, including air barriers, roofing systems, waterproofing and ground liners by locating leaks.

In accordance with ASTM E1186, the PosiTest AIR will indicate whether leaks exist in the test area. It is a simple Pass/Fail test.

1. Apply the PosiTest AIR Test Solution to the test area

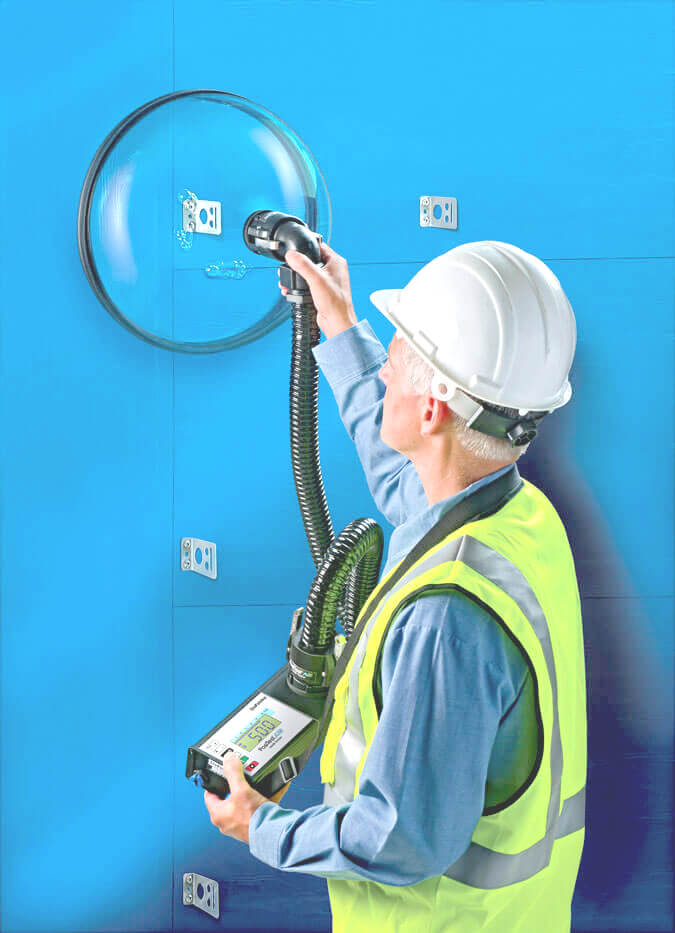

2. Place the clear Test Chamber over the test area

3. Initiate the test (depressurize the chamber)

The location of an air leak is indicated by bubbling of the Test Solution. An estimate of the relative size of the leak can be made based on the size and speed with which the bubbles form. The image below demonstrates an air leak is present (FAIL test result)

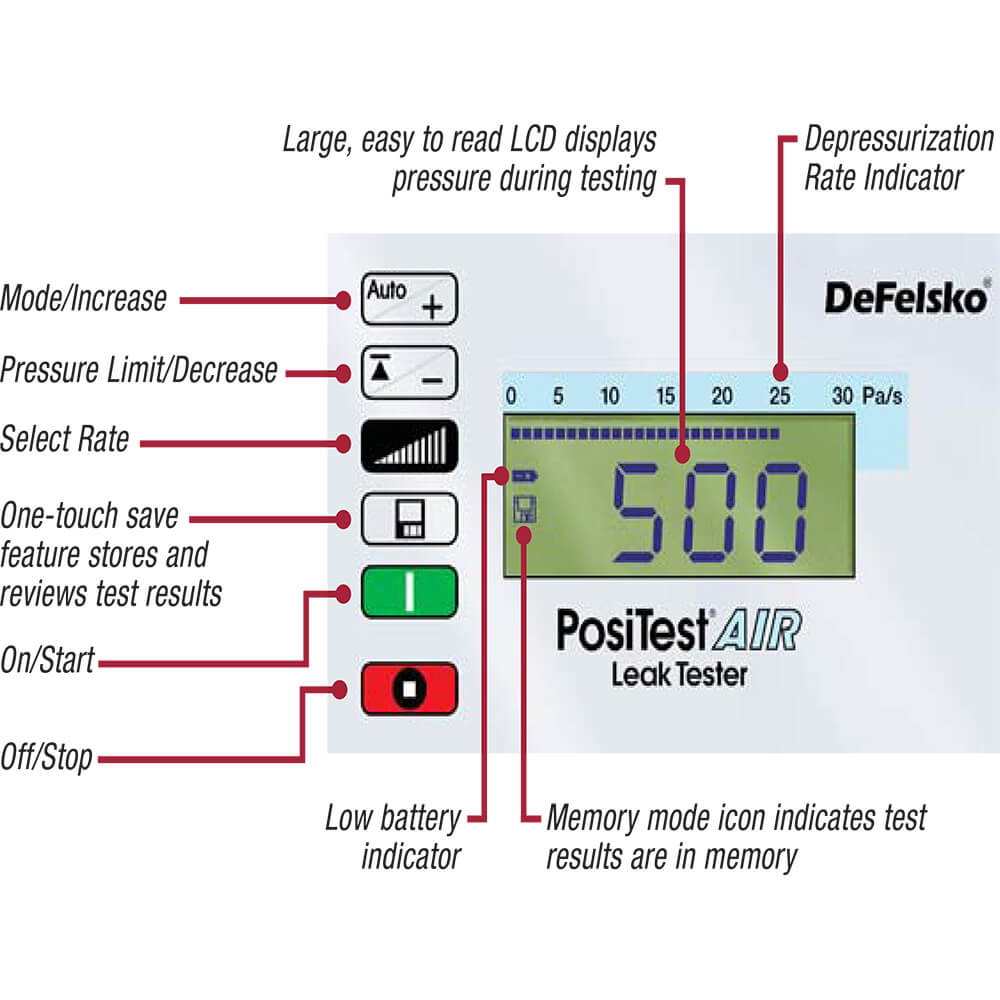

Upon completion of the test, the maximum pressure differential and duration of the test will flash on the display.

4. Store Test Result (optional)

The PosiTest AIR's internal memory can store up to 200 test results which can be transferred to a PC using PosiSoft 3.0 Desktop Software. Test results include rate of depressurization, pressure differential limit, time duration and user-entered PASS/FAIL conclusion.

Accessories

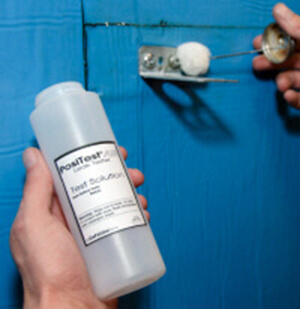

PosiTest AIR Test Solution TESTSLTN16 Every PosiTest AIR comes complete with (4) bottles of Test Solution. Additional bottles are available in cases of (16) 8 oz. bottles. Each bottle includes application dauber Operating temperature: 14° to 149° F (-10° to 65° C)

The PosiTest Air Test Solution has been specially formulated not to have any adverse effects on waterproofing, roofing, air barrier membranes or the PosiTest AIR tester. Do not use on spun polyolefin building wrap.

PRODUCT DATA SHEET
