Product Description

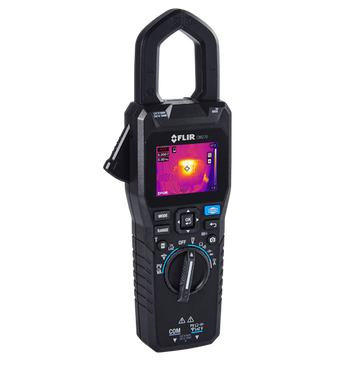

The FLIR CM276 clamp meter combines thermal imaging with electrical measurement for inspecting and troubleshooting electrical systems, solar panels, pumps, and motors. Through IGM™ (Infrared Guided Measurement), the CM276 provides a reliable way to identify hot spots and overloaded circuits from a safe distance. Compatibility with the METERLiNK® app provides quick and efficient capture of readings, images, and videos for analysis, trending, and sharing.
|
Perform safe, quick, and accurate inspections Safely locate potentially dangerous problems without direct contact using FLIR IGM™. Get unmatched clarity and detail in your readings with FLIR MSX®, which embeds and outlines detail onto thermal images. Purpose built for all-day operation Built-in LED worklights for better visibility in dark or poorly lit areas, one rechargeable lithium polymer battery pack for all-day operation, and a 2 m (6.5 ft) drop test rating for durability. Unmatched connectivity and analysis Use the FLIR METERLiNK® app to quickly and efficiently capture and store up to 30,000 radiometric images, record thermal and visual video clips, and create reports. |
|

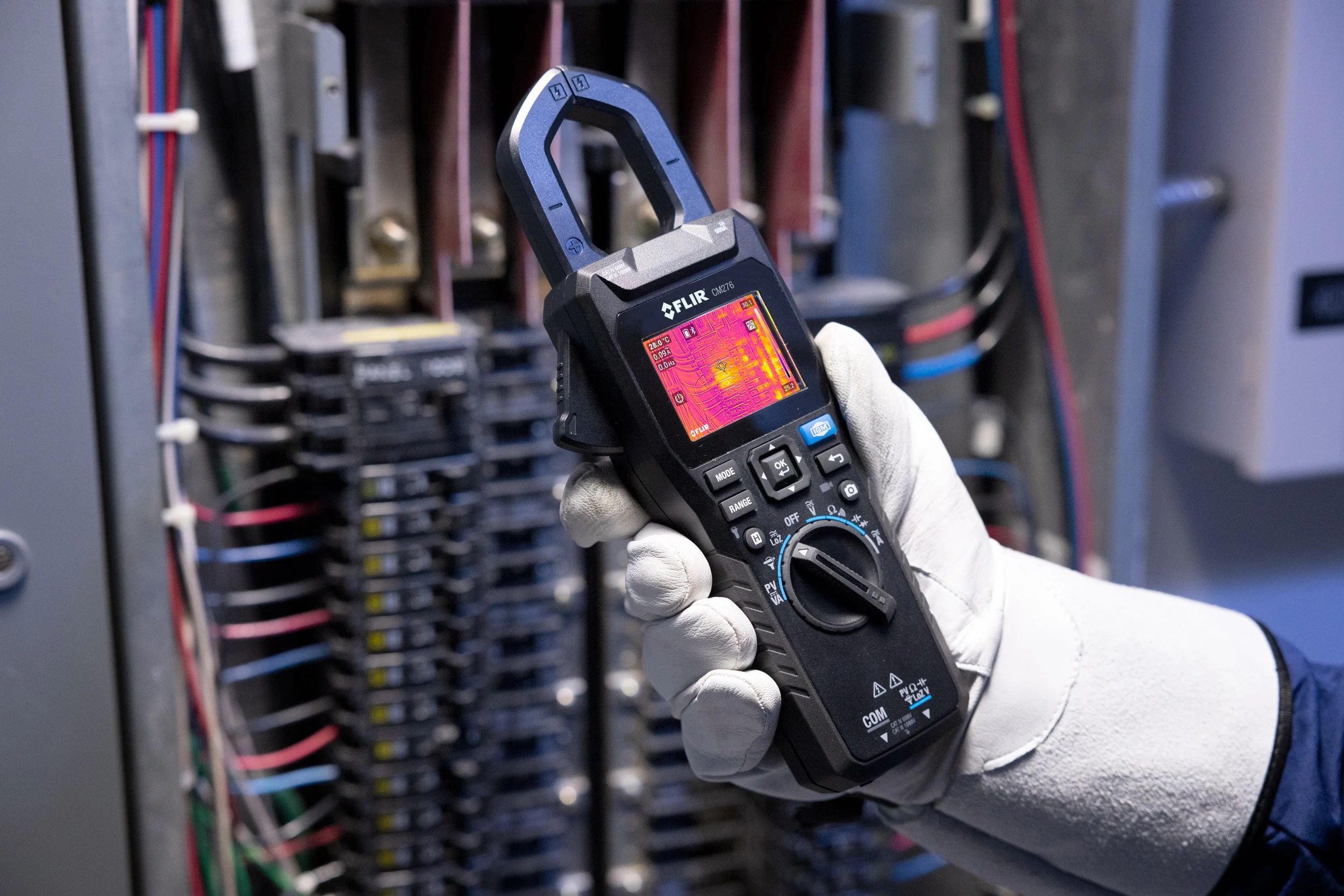

WORK FASTER, WORK SMARTER IGM™ Infrared Guided MeasurementUpgrade your testing tool with Infrared Guided Measurement IGM. Utilizing the FLIR Lepton® sensor, IGM visually guides you to hidden temperature issues so you know precisely where to focus your troubleshooting. Eliminate guesswork and boost efficiency. Impress customers by uncovering problems and showcasing solutions. |
 |

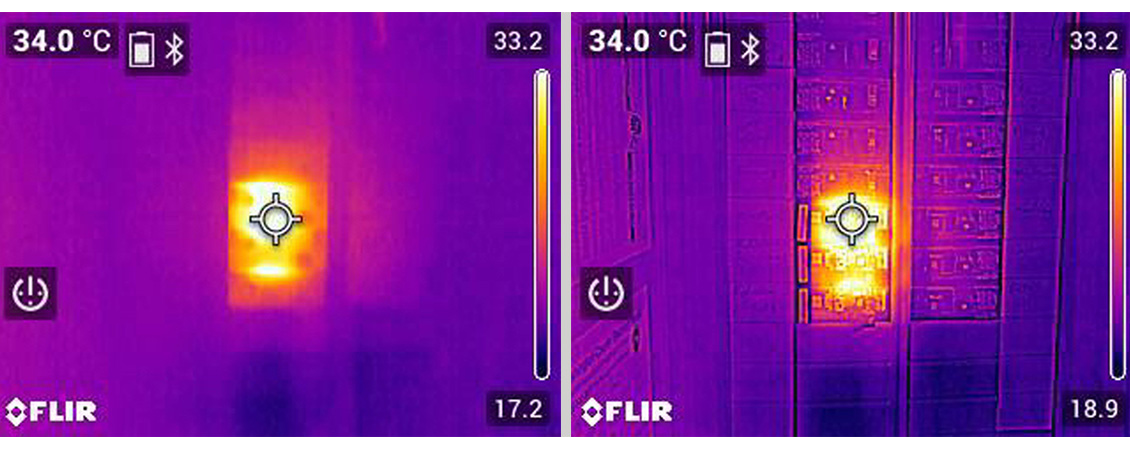

UNRIVALED IMAGE QUALITY MSX® Image EnhancementThe FLIR CM276 clamp meter and thermal imaging camera features FLIR's unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately on the camera's display. |
|

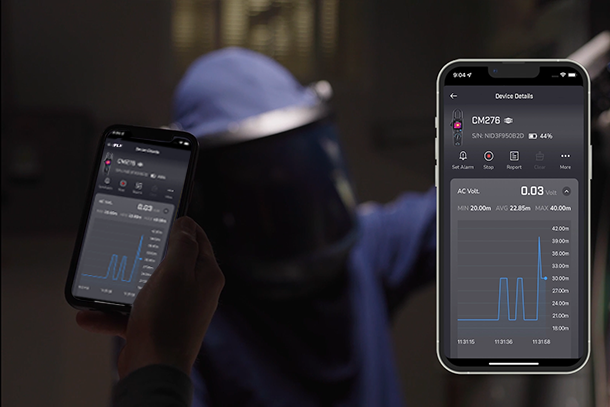

GET THE INSPECTION INFORMATION YOU NEED FLIR METERLiNK® AppThe FLIR METERLiNK® app allows you to monitor a variety of environmental and electrical conditions simultaneously with the ability to connect with up to seven FLIR compatible meters at once. METERLiNK allows you to safely capture images and monitor hazardous areas remotely and in real time. Whether you're connecting several FLIR clamp meters, digital multimeters, or any of the new METERLiNK app compatible meters, you will be able to keep tabs on key readings around your facility and easily share them with your team. |
|
Specifications
- IR Resolution
- 160 × 120 (19,200 pixels)
- Display Size
- 2.4 in, TFT screen
- Jaw Opening
- 35 mm (1.37 in)
- AC/DC Voltage
- Range 1000 V / Basic accuracy ±1.0%
- Data Logging & Storage
- 10 sets of 30K scalar measurements, 100 images
- Connectivity
- Bluetooth®
Imaging & Optical
- Color Palettes
- Iron, rainbow, arctic, white hot, and black hot
- Display Size
- 2.4 in, TFT screen
- Field of View [V x H]
- 44° × 57°
- Focus
- Fixed
- Image Modes
- Thermal MSX (Multi Spectral Dynamic Imaging)
Thermal camera only
Digital camera only
- IR Resolution
- 160 × 120 (19,200 pixels)
- Sensitivity
- 150 mK
- Spectral Response
- 8µm to 14 µm
- Thermal Imaging Detector
- FLIR Lepton® microbolometer
Measurement & Analysis
- AC/DC Current
- Range 600.0 A / Basic accuracy ±2.0%
- AC/DC Voltage
- Range 1000 V / Basic accuracy ±1.0%
- Auto Range
- Yes, with manual range option
- Capacitance
- Range 1000 µF / Basic accuracy ±1.0%
- Continuity check threshold
- ≤30 Ω beeper on, ≥150 Ω beeper off
- Diode
- Range 1.5 V / Basic accuracy ±1.5%
- Flex Input AC A
- Range 3000 A / Basic accuracy ±1.0%
- Flex Input Frequency Counter
- Range: 10.00 kHz / Basic accuracy: ±0.1%
- Inrush AC Current
- Range 600.0 A / Basic accuracy ±3.0%
- LoZ Mode AC Voltage
- Range 60.00 V, 600.0 V, 1000 V / Basic accuracy ±1.0%
- LoZ Mode DC Voltage
- Range 60.00 V, 600.0 V, 1000 V / Basic accuracy ±1.0%
- Measuring Rate
- 3 samples per second
- PV DC Power
- 900 kVA / Basic accuracy ±2.0%
- PV DC Voltage
- Range 1000 V / Basic accuracy ±2.0% with TA82
Range 1500 V / Basic accuracy ±2.0% with TA85/TA86 (optional accessories)
- Resistance
- Range 60 KΩ / Basic accuracy ±1.0%
- Temperature [IR]
- -10°C to 300°C (14°F to 572°F)
- Temperature Accuracy
- ±3°C (5.4°F) or ±3% of the reading; whichever is greater
- True RMS
- Yes
- VFD AC Current
- Range 600.0 A / Basic accuracy ±2.0%
- VFD AC Voltage
- Range 1000 V / Basic accuracy ±1.0%
Communication & Data Storage
- Connectivity
- Bluetooth®
- Data Logging & Storage
- 10 sets of 30K scalar measurements, 100 images
- Storage Media
- eMMC 8 GB
Power
- Auto Power Off
- For device: option to OFF, 2, 5, or 10 minutes
For worklight only: option to OFF, 5, 15, or 30 minutes
- Battery
- Rechargeable 3.7 V, 5400 mAh LiPo
General
- Jaw Opening
- 35 mm (1.37 in)
- Laser Pointer
- Type: Class 1
Power: ≤0.39 mW
Wavelength: 640 nm to 660 nm
- Size [L × W × H]
- 272 mm × 100 mm × 51.5 mm (10.7 in × 3.94 in × 2.0 in)
- Weight
- 560 g (19.8 oz)
- Worklights
- 2 × white LED
Environmental & Certifications
- Drop test
- 2 m (6.5 ft)
- Emissivity Settings
- 0.10 to 1.00 (default is 0.95); select from three presets or set manually
- IP Rating
- IP40
- Warranty
- 10 year
